Tooth extraction and immediate loading procedure
Case Study
The patient, in his fifties, had lost his teeth. Immediately after the extraction, implants were placed and different Multi-unit systems were chosen. The Multi-unit systems were chosen so that the screw channels were parallel and in an occlusal direction. The angled Multi-unit has a support that helps to predict the angle of the future screw channel.Immediately after the assembly of the Multi-units, the scan bodies were mounted on the Multi-units.
For straight Multi-units, V-Type Multi-units were chosen, while for angled ones, D-Type were used.
The V-Type has a smaller cone and the hexagon is inside the Multi-unit, a more suitable option when there is not enough interocclusal space and gives more thickness to the zirconia, thus reinforcing the crown.
The D-Type has a larger cone and an angled version that has the same sleeve.

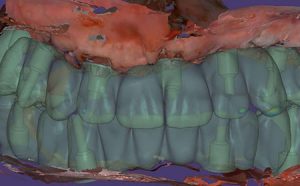

After taking the impression, a bridge was modeled using Exocad software.
Conclusions
A provisional bridge made of PMMA was created. Different sleeves were cemented for both the V-type and D-type.
Products used in this case study:
- Abutment Multi-Unit Angled (30°) D-type
- Abutment Multi-Unit Straight D-type, internal hexagon
- Healing screw for MUA D-type
- Kit Abutment Multi-Unit straight V-type with 3.0 mm Sleeve
- Healing screw for Multi-Unit V-Type
